Description

HDMI 2.0 Detachable HDMI Armoured AOC-4K@60Hz

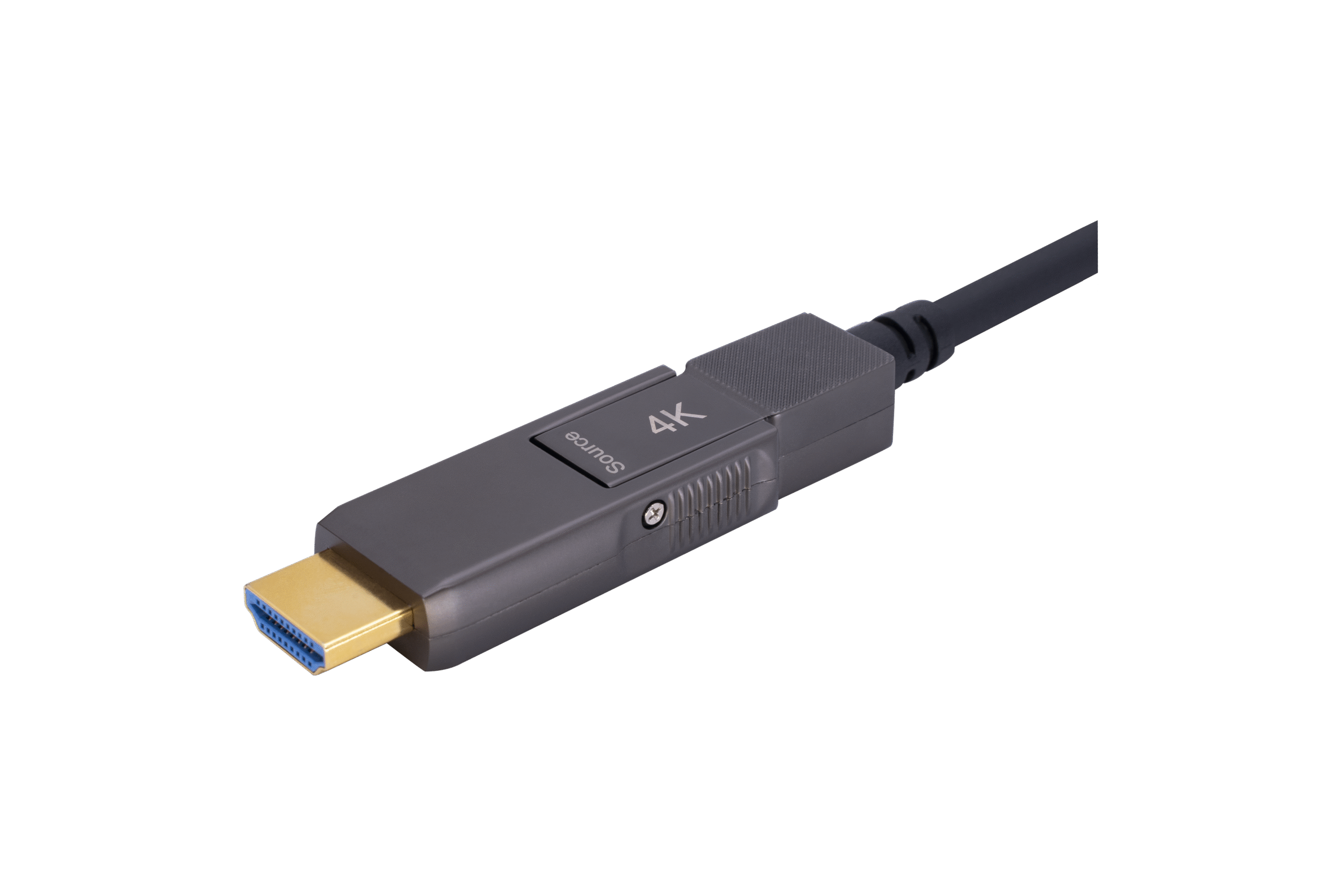

The Link Aura LA-AOC-4KHD2A Series HDMI Armored Active Fiber Optic UHD Pluggable HDMI Cable is designed for demanding and adaptable installations. It supports HDMI data rates up to 5Gbps per channel, with a total bandwidth of 18Gbps. The cable is lightweight and flexible with an ultra-small bending radius of 45mm, ideal for long-term use. Equipped with advanced optical technology, it ensures complete HDMI signal integrity over distances up to 100 meters. The cable provides a hassle-free, plug-and-play experience with no external power required.

Features

• Compatible with HDMI 2.1 standard: EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc.
• Supports 4096 x 2160 / 3840 x 2160 (4K) @60Hz 4:4:4 resolutions
• Delivers dual video streams to compatible displays
• 21:9 cinema aspect ratio and BT.2020 colorimetry
• Compliant with category 2 specifications — 600-MHz clock frequency
• Up to 32 audio channels with a 1536-Hz sampling rate
• Supports up to eight PCM channels, DTS-HD Master and Dolby Digital True HD
• Cable OD: 5.8mm, 4 fiber + 7 copper wire
• Up to 100m Maximum Length (Custom Length Available)
• OM3 fiber technology reduces EMI/RFI emissions
• Triple-shielding for optimal signal quality
• Extended temperature range -40°C to 70°C (suitable for harsh environments)
• TPU Jacket is soft and durable
• Plug and Play, no external power required

Applications

• Digital Signage
• LED Signboards (streets & stadiums)
• Medical Imaging Equipment
• Airplane On-board Video System
• Home Theater, Blu-ray, 3D Video, Projectors, Set-top boxes, DVR, Game Consoles, Computers
• TV Broadcast Stations
• Conference Room Video Equipment
• Security Systems

Ordering Information
