Description

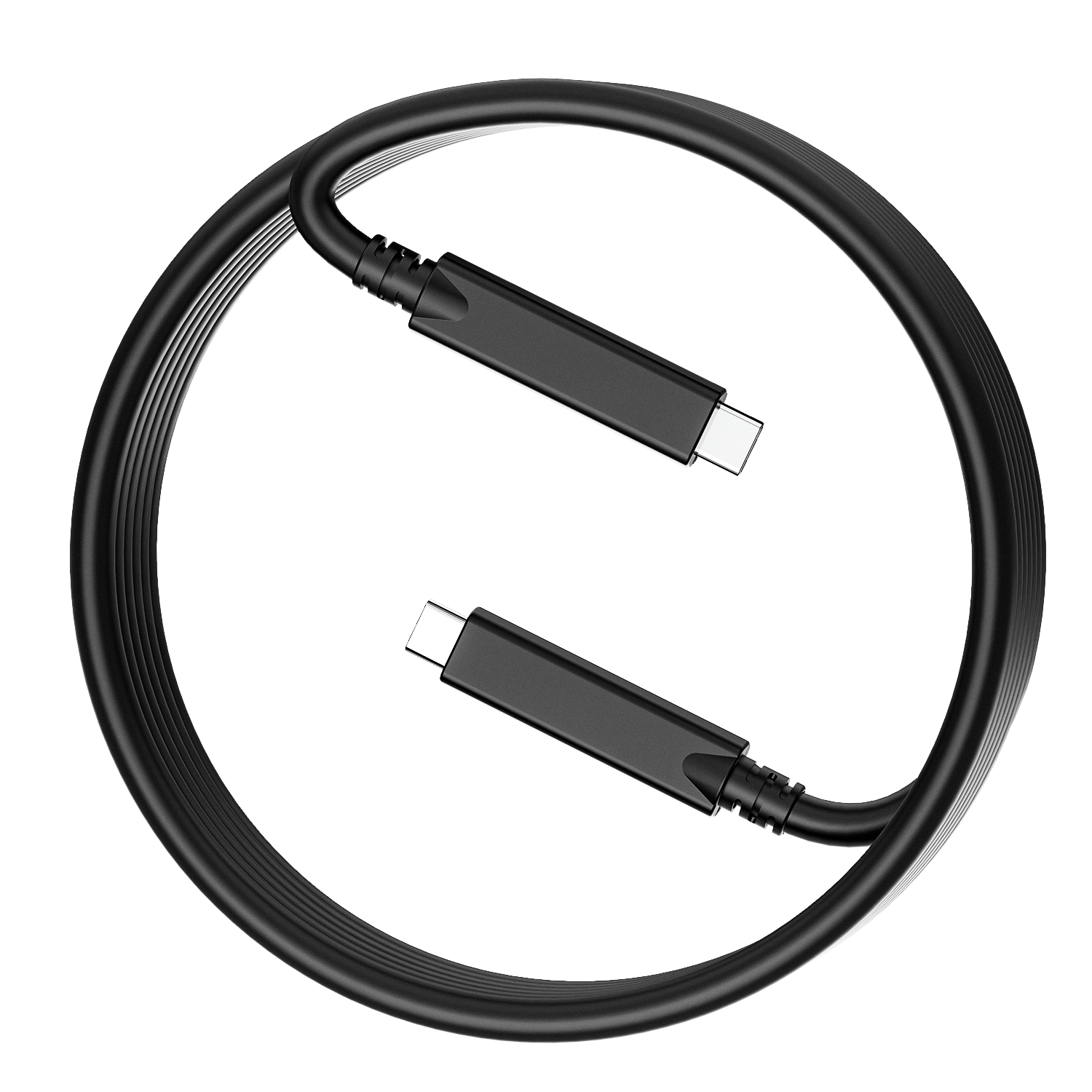

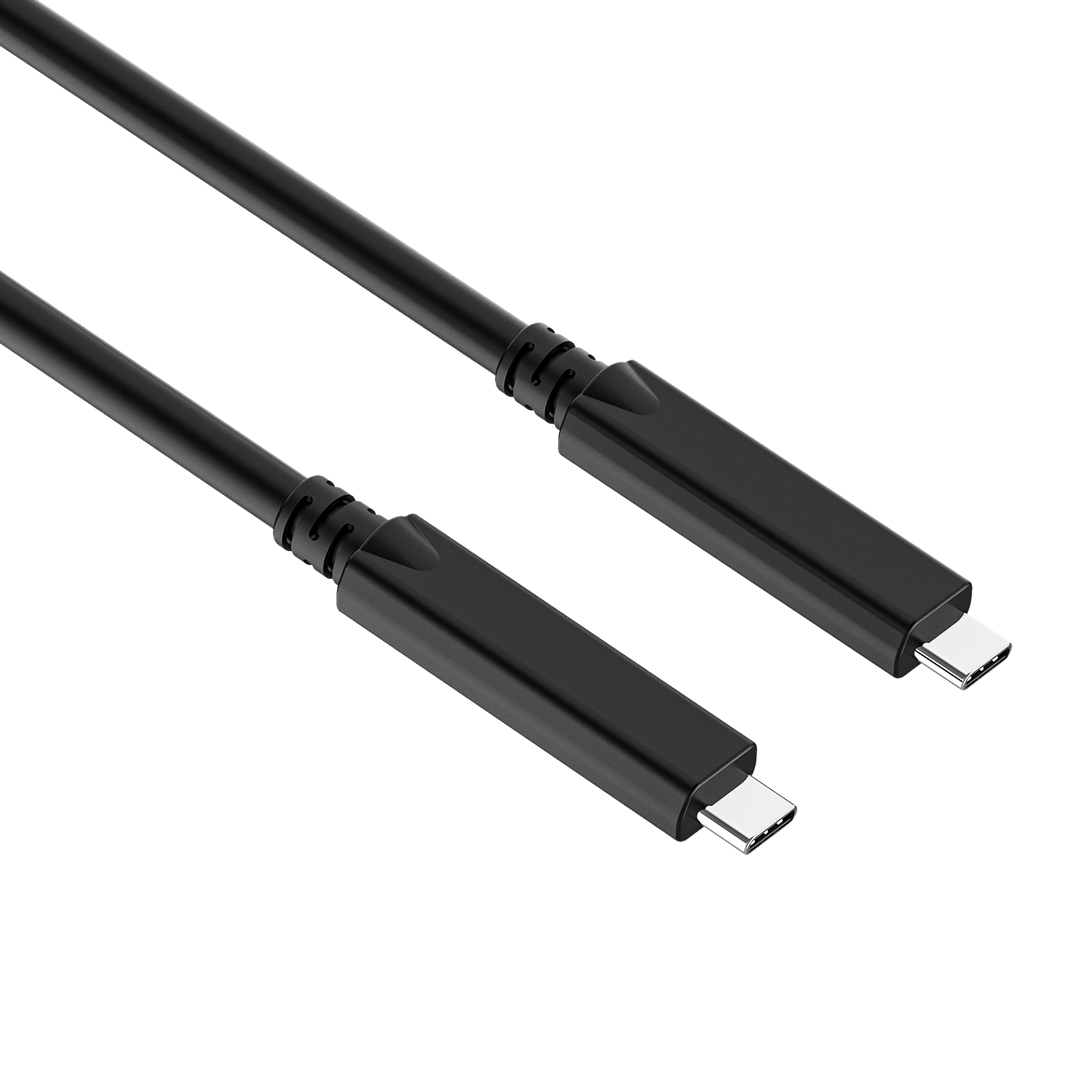

USB-C 3.2 Gen2 Full Function AOC CABLE
LA-AOC-CCFF Series
Link Aura LA-AOC-CCFF Series USB type-C active optical cable (AOC) using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit USB2.0/1.1, USB3.2 Gen2 and 2-lane DP1.4 with excellent signal quality. Compared with the traditional copper wire, it is softer, slimmer, lighter and with perfect EMI/EMC feature. And it also has better reliability performance than copper wire.
Features
- Support USB 3.2 Gen2x1 10Gbps
- Support USB 2.0/1.1 high speed and full speed
- Support DP 1.4, 4K@60Hz and 16.2Gbps
- Plug and play without driver dependent
- Highly resistant to EMI and RFI
- Support PD 60W (20V/3A)
- Support max length up to 15m
- Specially Designed for IFP’s
Application
- Digital Signage
- LED signboards in streets and in stadiums
- Medical Imaging Equipment
- Airplane On-board Video System
- Home Theater, Blue-ray, 3D videos, Projector, Set-up box, DVR, Game Consoles and Computer
- TV Broadcast Station
- Conference Room Video Equipment
- Security systems
Technical Specification
| Item |
Description |
| Cable Length |
Up to 15m |
| Interface |
USB type-C plug – USB type-C plug |
| Bandwidth |
U3:10Gbps; U2: 480Mbps; DP1.4 16.2Gbps |
| Power Delivery |
PD60W, 20V 3A |
| Power Supply |
By Vconn (3.0 V to 5.5V) |
| Power Consumption (TYP.) |
1100mW (5V input) |
| Cable Outer Diameter |
6.5mm |
| Jacket Outer Material |
PVC |
| Cable Filler |
Kevlar |
| Cable Weight |
See packing details sheet |
| Cable Color |
Black or custom |
| Bend Radius |
10OD |
| Tensile Strength |
200N |
Absolute Maximum Ratings
| Parameter |
Symbol |
Min |
Max |
Unit |
| Power Supply Voltage |
VCC |
3 |
5.5 |
V |
| Operating Temperature |
Top |
0 |
50 |
°C |
| Storage Temperature |
Ts |
-40 |
70 |
°C |
| Relative Humidity |
Hs |
10 |
80 |
%RH |
Ordering Information
| Part Number |
Description |
| LA-AOC-CCFF-05 |
USB3.2 Gen2x1 Type-C Full Functional Active Optical Cable – 5m |
| LA-AOC-CCFF-10 |
USB3.2 Gen2x1 Type-C Full Functional Active Optical Cable – 10m |
| LA-AOC-CCFF-15 |
USB3.2 Gen2x1 Type-C Full Functional Active Optical Cable – 15m |
