Description

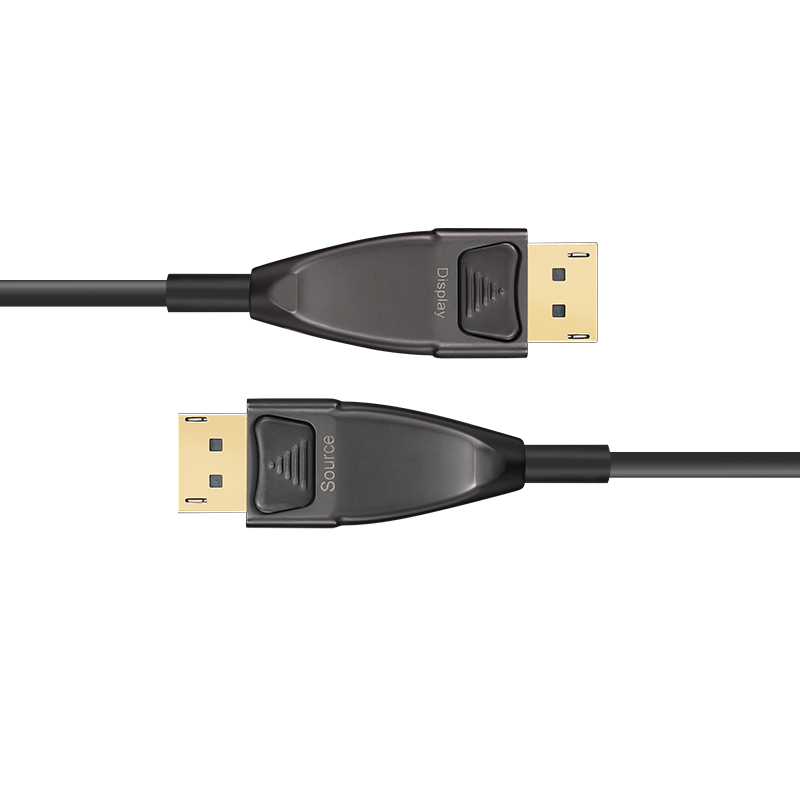

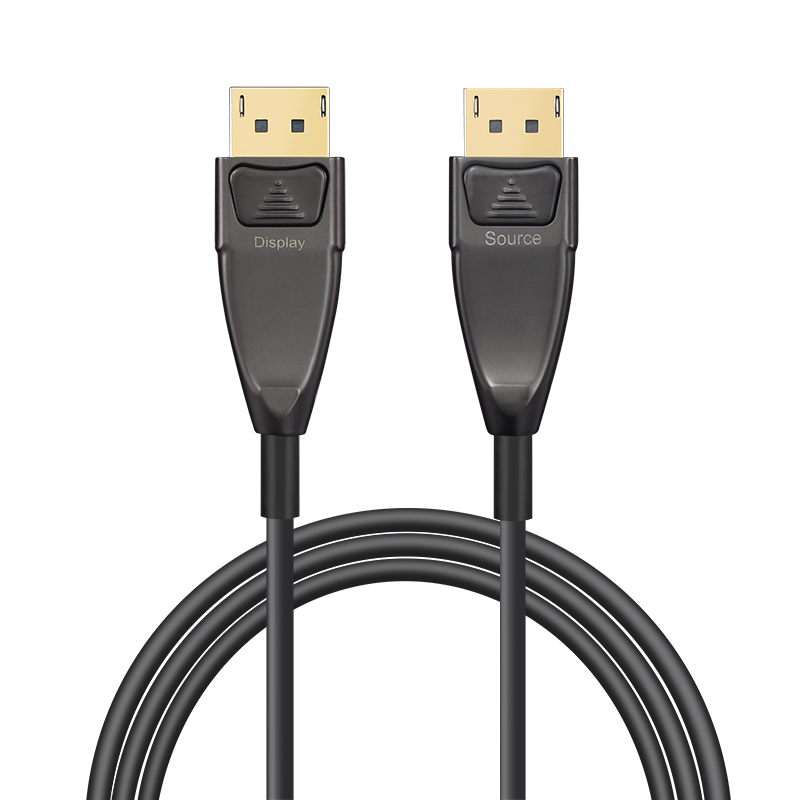

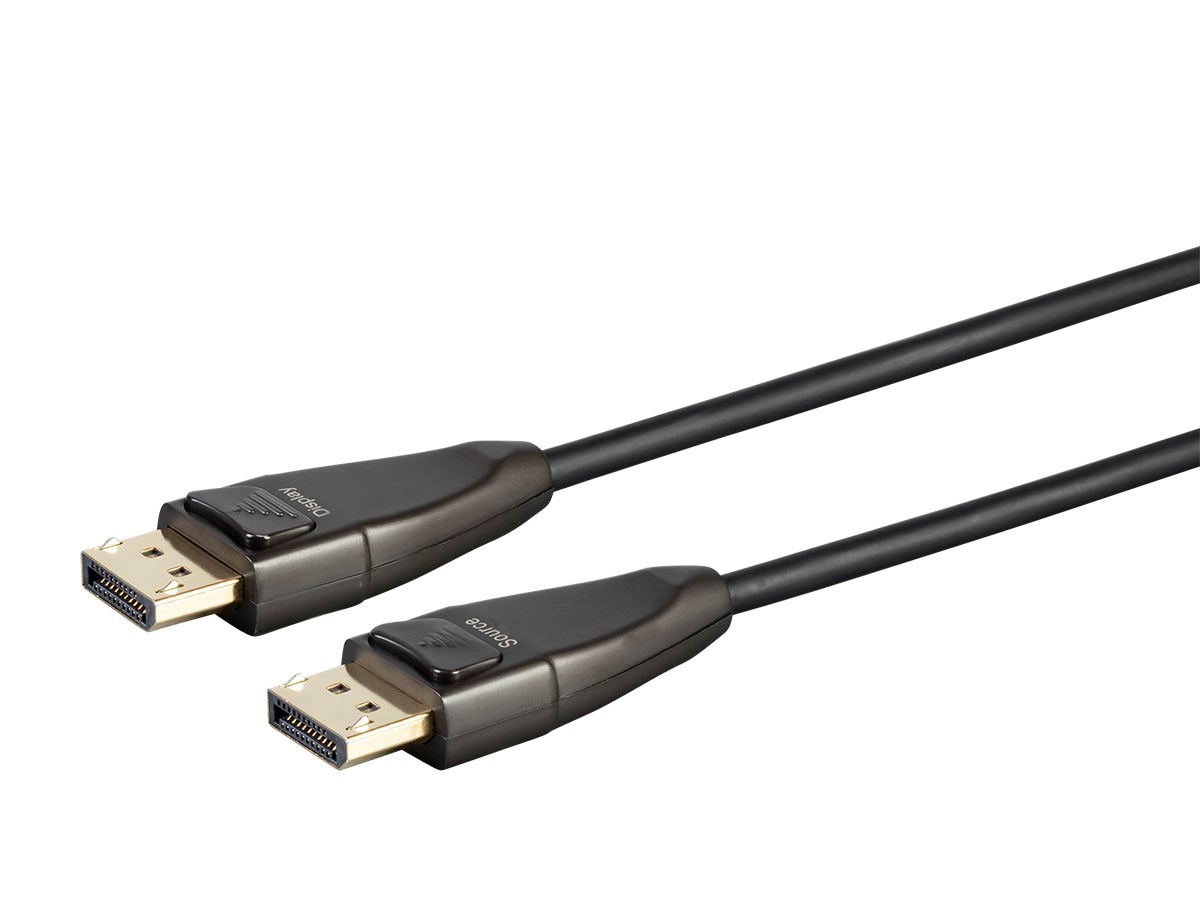

DP 1.4 Active Optical Cable 7680 x 4320 (8K) @ 60 Hz

The LinkAura LA-AOC-DP14 Series DP active Fiber Optic 8K DP Cable which is suited for critical and versatile installations. It supports DP 1.4 Maximum Data Rate 32.4 Gbps with light weight, flexible and ultra-small long-term bending radius (20mm) hybrid cable. With our advanced optical engine embedded. This DP Hybrid Cable provides full DP1.4 signal integrity, support up to 100m maximum length, plug and play. No external power
required.

Resolution: 7680 × 4320 (8K) @ 60 Hz

Max Length: Up to 100 meters

Data Rate: 32.4 Gbps

Features

• Compliance with 8K (7680 × 4320) @ 60 Hz resolutions up to 100m
• Data transfer rates up to 32.4 Gbps
• Compatible with DP 1.4 standard: EDID, HBR3, HDCP (2.2), HDR, HEC
• 21:9 cinema aspect ratio and BT.2020 colorimetry
• Supports up to 32 audio channels with 1536 Hz sampling
• Dual video streams to compatible displays
• Zinc-alloy DP connectors for durability

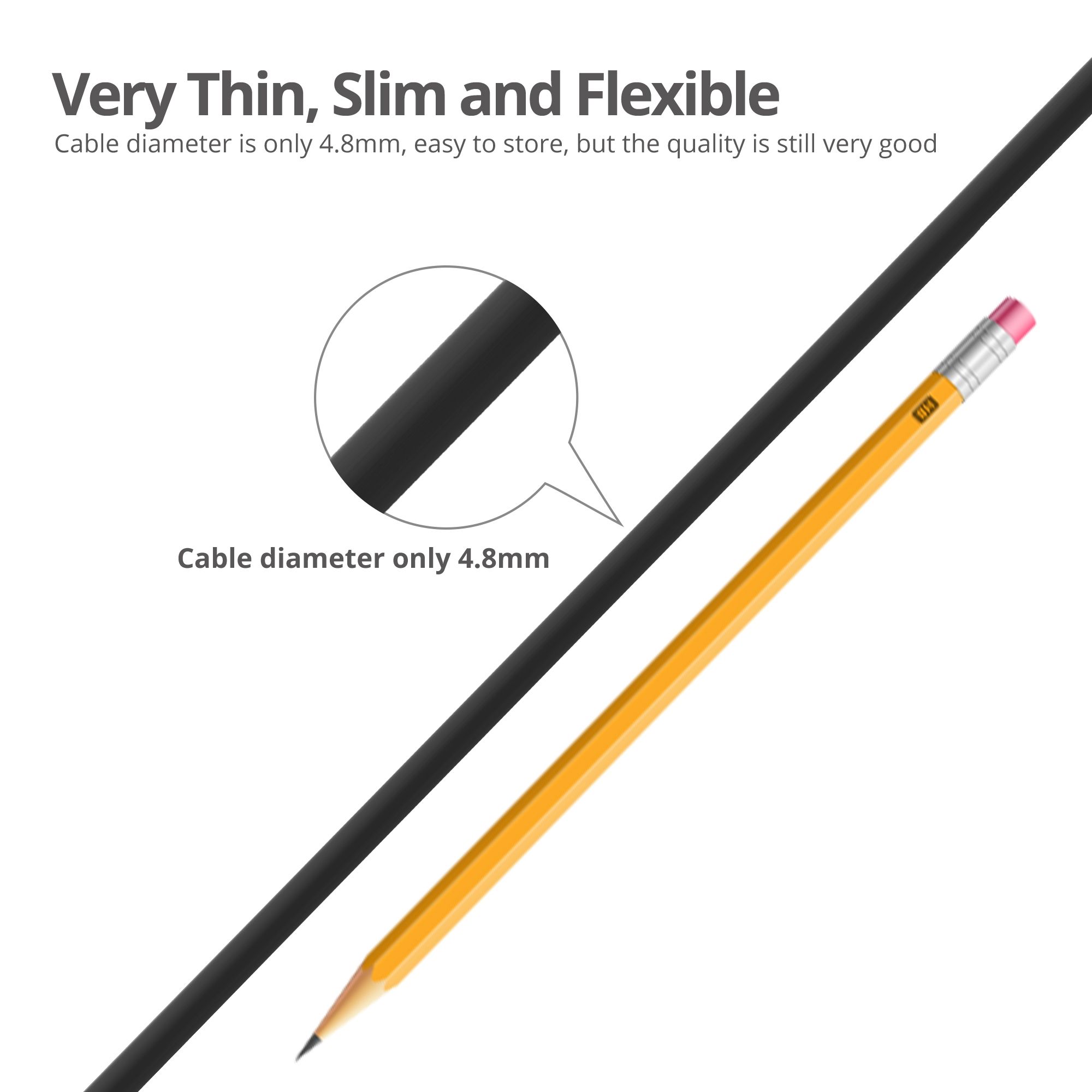

• Cable OD: 4.8mm, 4 fiber + 8 copper wire
• Triple-shielding for signal quality
• OM3 fiber reduces EMI/RFI emissions
• Hybrid construction with fiber + copper
• Temperature range: -40°C to 70°C
• Fire safety compliant (CL2, CL3, CMP, LSZH Jackets)
• Source & Display clearly printed on connectors
• High pulling strength & compression load
• Plug & play, no external power required
• Detachable connector at display end

Applications

• Digital Signage
• Home Theatre
• Security Systems
• TV Broadcast Stations
• LED Signboards (Streets & Stadiums)
• Conference Room Video Systems
• Medical Imaging Equipment
• Blu-ray, 3D, Projector, Set-top Box, DVR, Game Consoles

Ordering Information
