Description

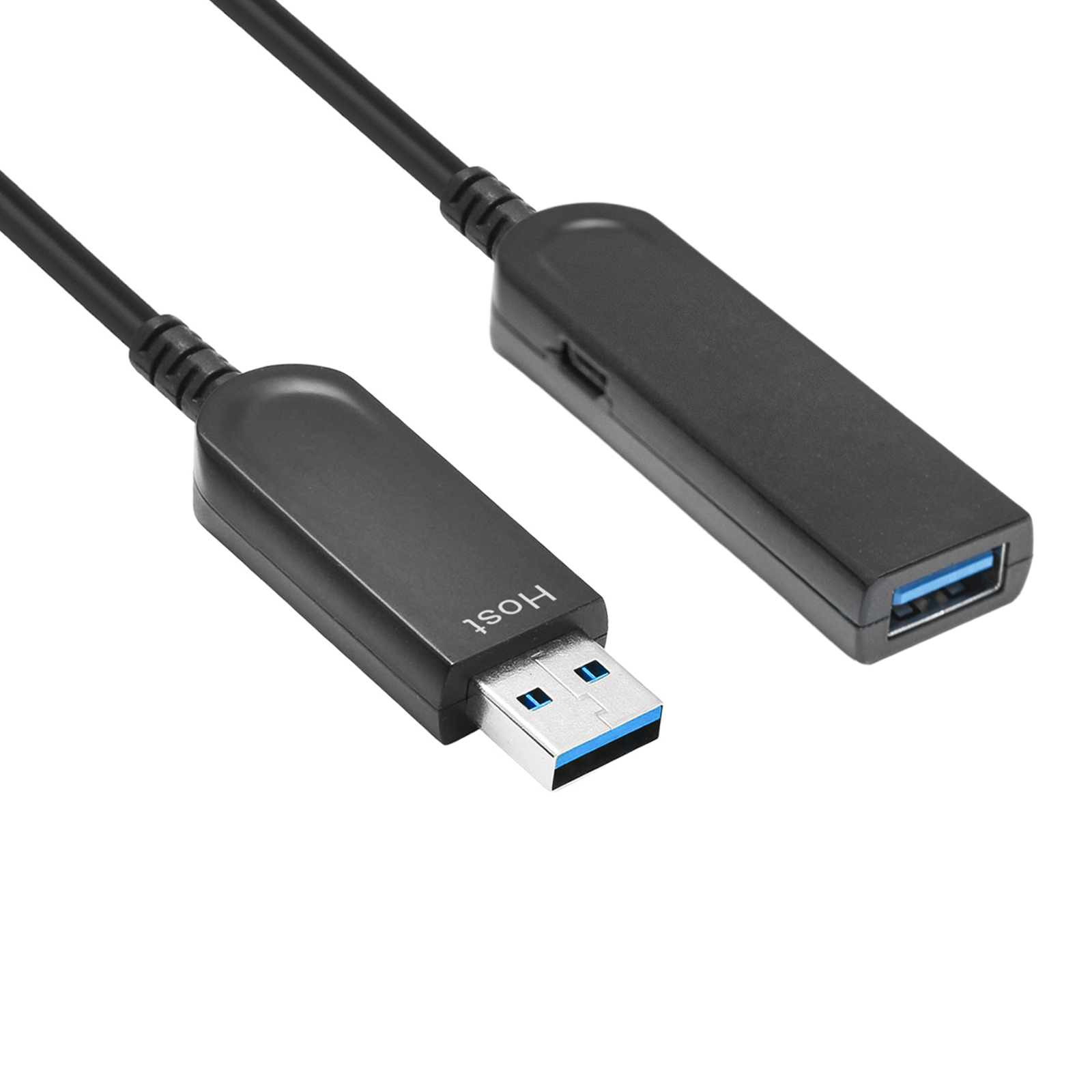

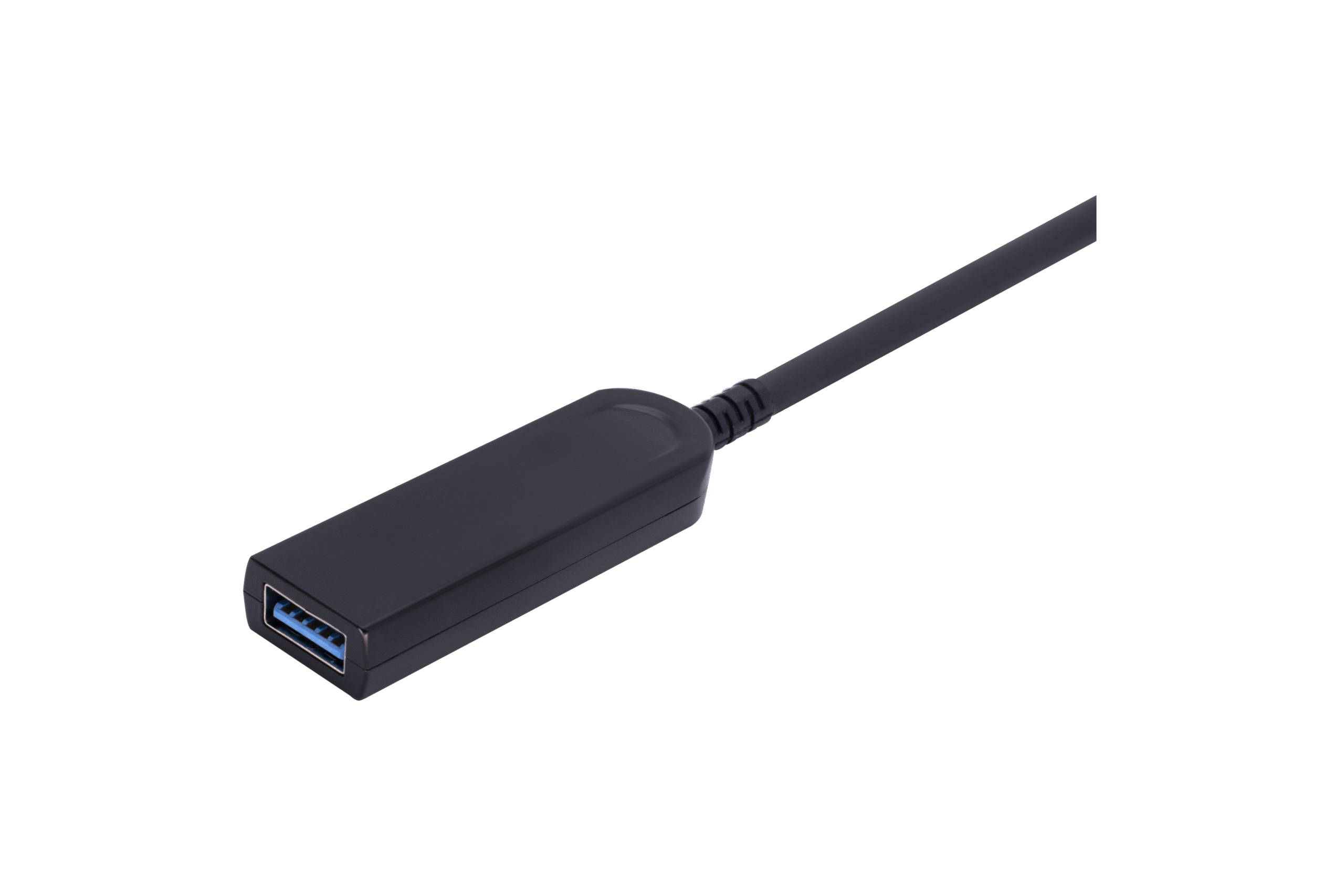

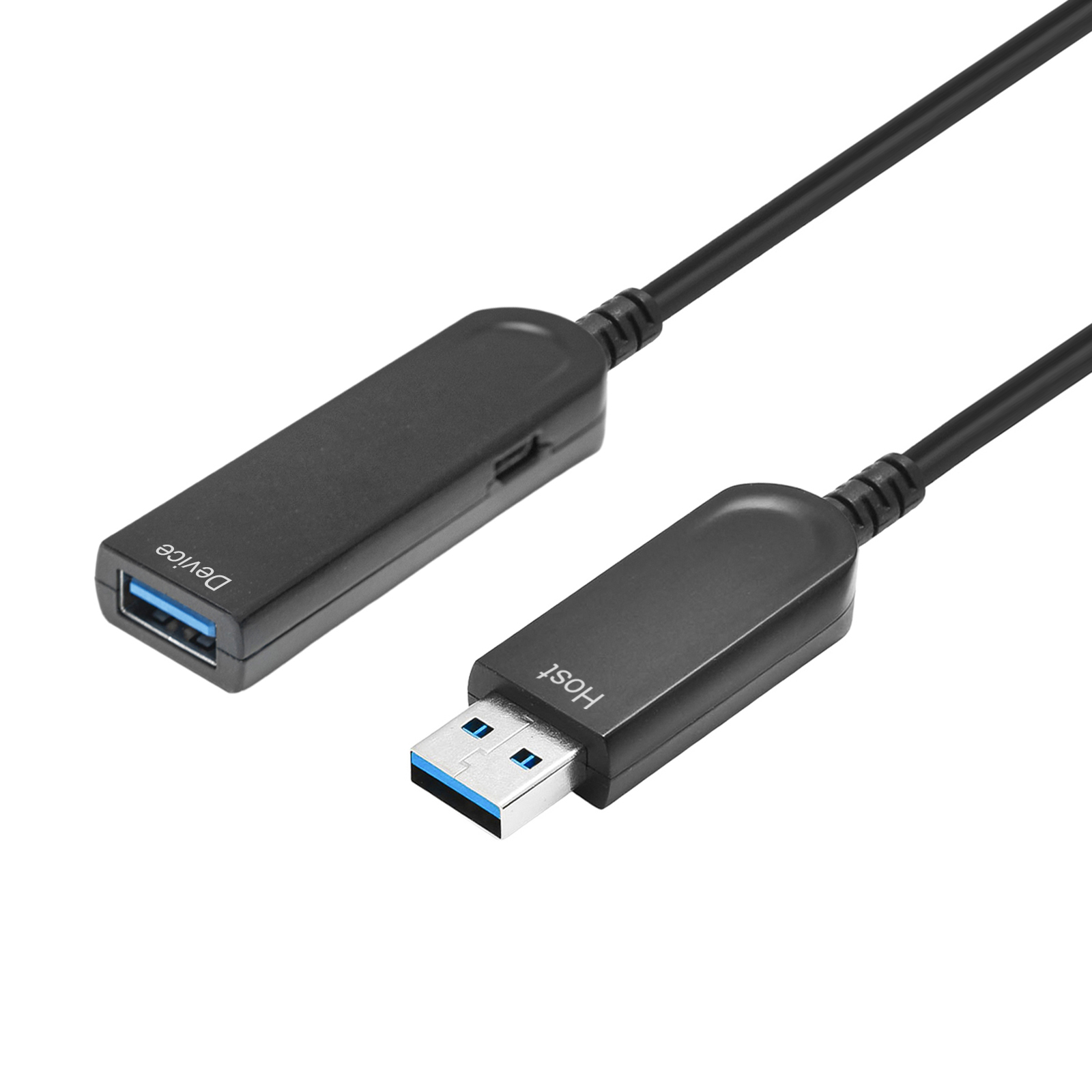

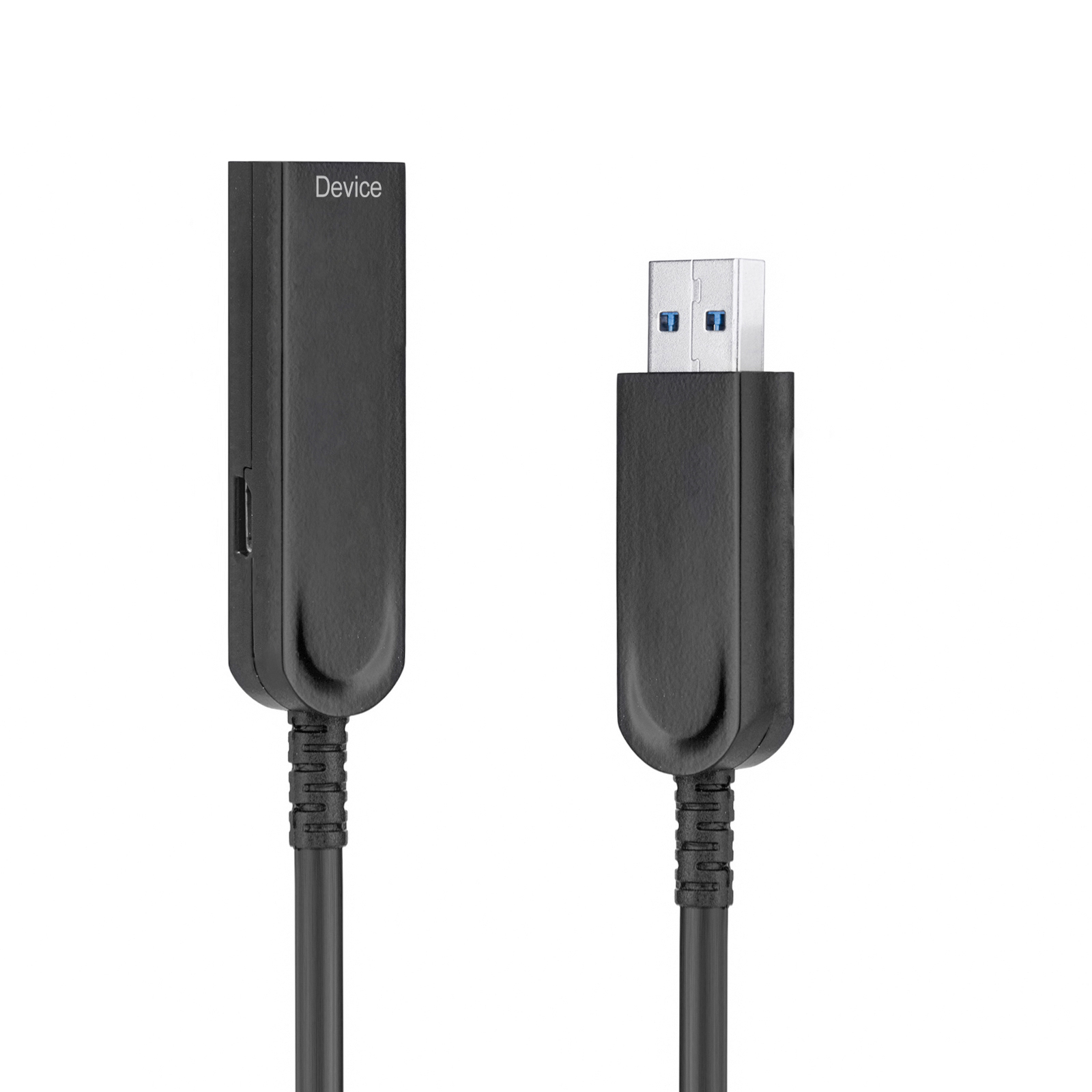

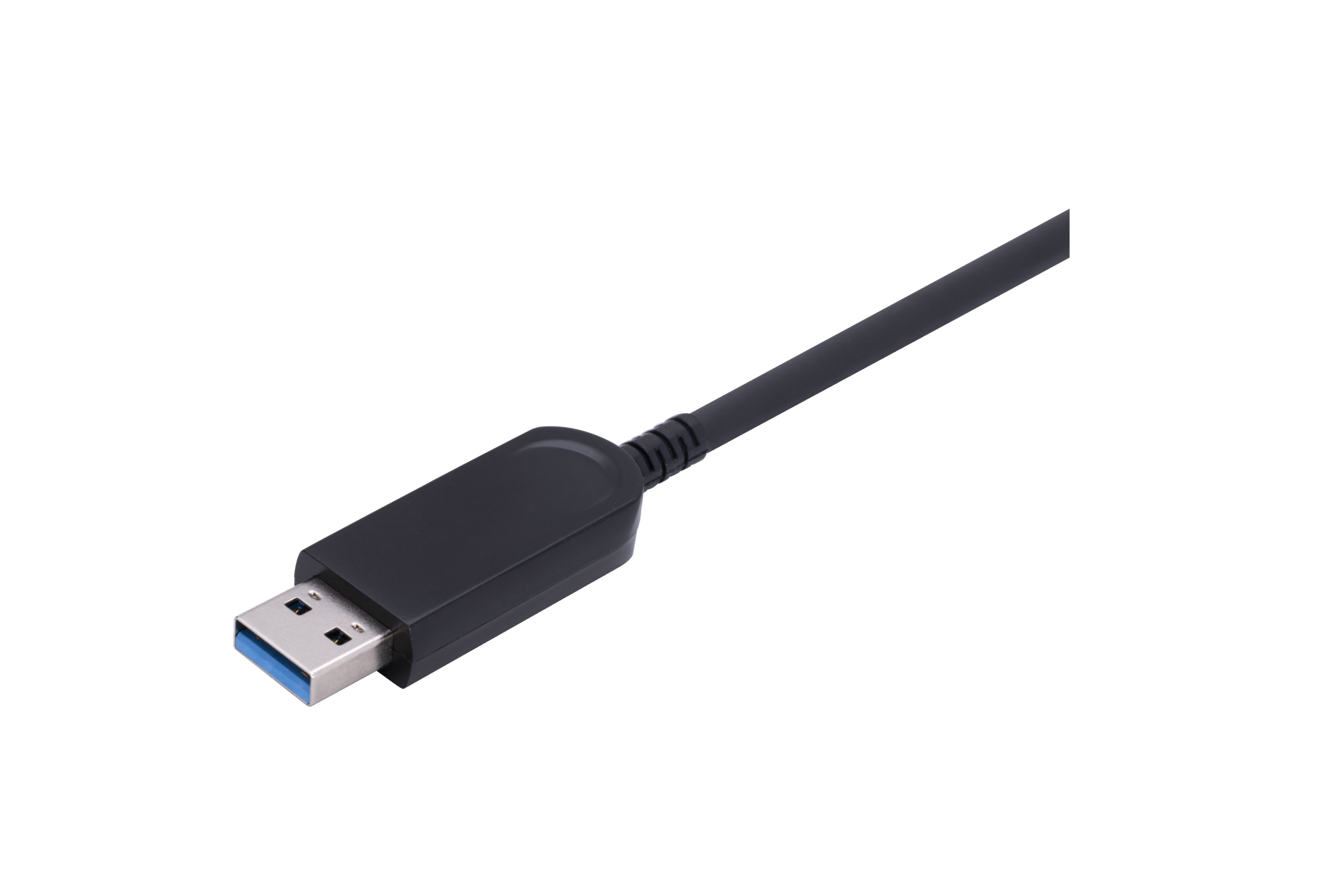

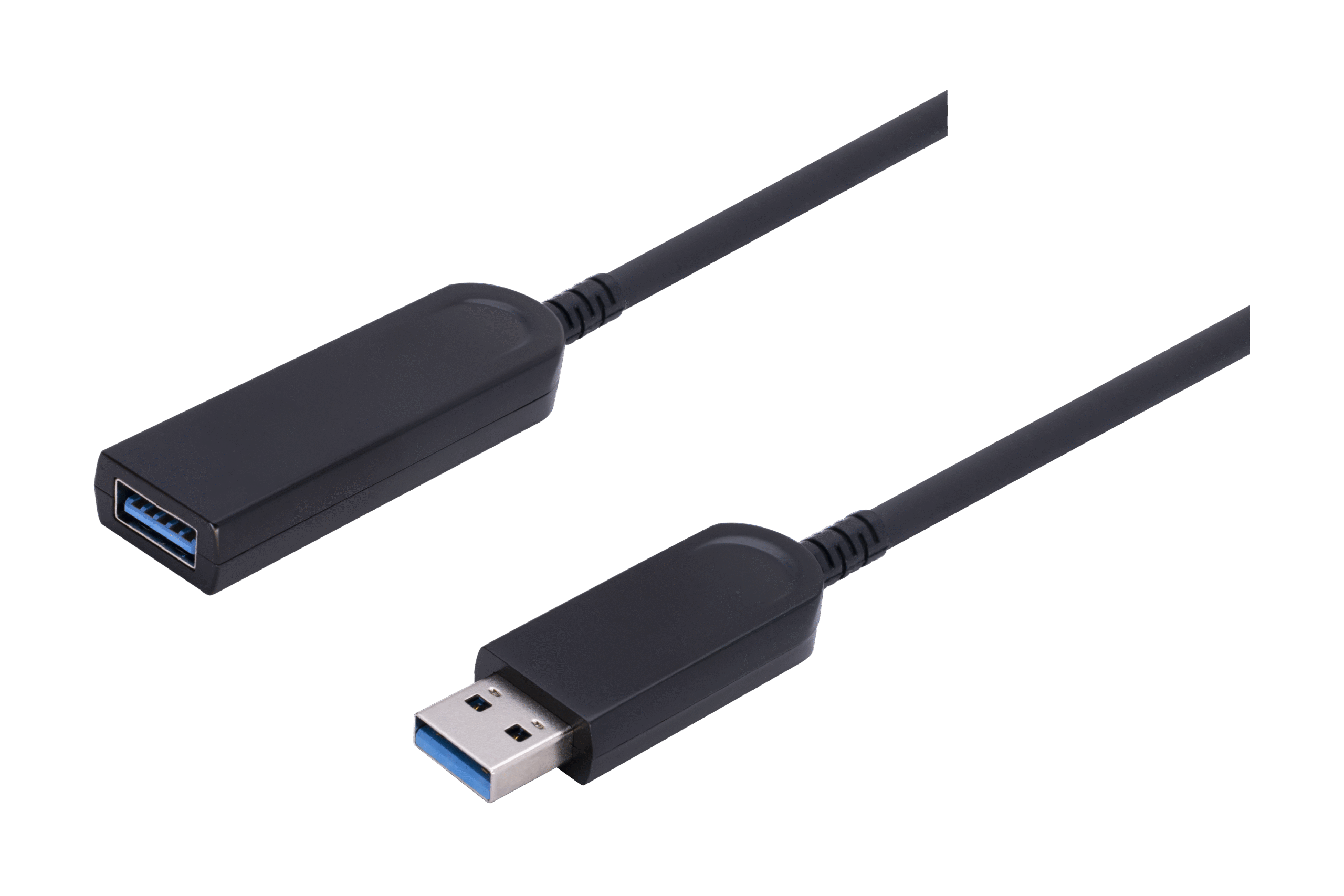

The LinkAura LA-AOC-UAMAF Series is a USB 3.0 Type-A Male to Type-A Female
Active Optical Cable (AOC) supporting 10Gbps SuperSpeed data transmission up to
50 meters. It is the first Gen2 AOC in the market downward compatible with USB 2.0
(and partially with USB 1.1 for cables up to 15m).
With its hybrid fiber + copper design, the cable delivers stable, EMI-free signals and
is suitable for industrial, medical, and multimedia applications where long-distance, high-speed
USB connectivity is required.

Features

• Extends USB 3.0 Gen 2×1 up to 50 meters
• Supports all USB 3.0 devices, downward compatible with USB 2.0 and USB 1.1*
• *Cables above 15m do not support USB 1.1
• Supports all major operating systems: Windows, Mac OS, Linux
• Fiber-optic noise immunity, no EMI interference
• Plug and Play, no external power supply required
• Self-powered peripherals only
• Compact cable OD: 4.5mm, 4 fiber + 4 copper wires

Applications

• Industrial Control
• Digital Signage
• Home Network Integration
• Medical Device Connectivity
• KVM Extension
• Remote Desktop USB 3.0/2.0/1.1 Connections
• Security (web cameras, access control)
• USB Device Sharing (printers, scanners, storage, audio devices)

Key Specifications

• Supply Voltage: 4.75 – 5.25 V
• Bus Current: ~55 mA typical
• Differential Impedance: 90 Ω
• TX Output Power: 0 dBm
• RX Sensitivity: -7.5 dBm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
