Description

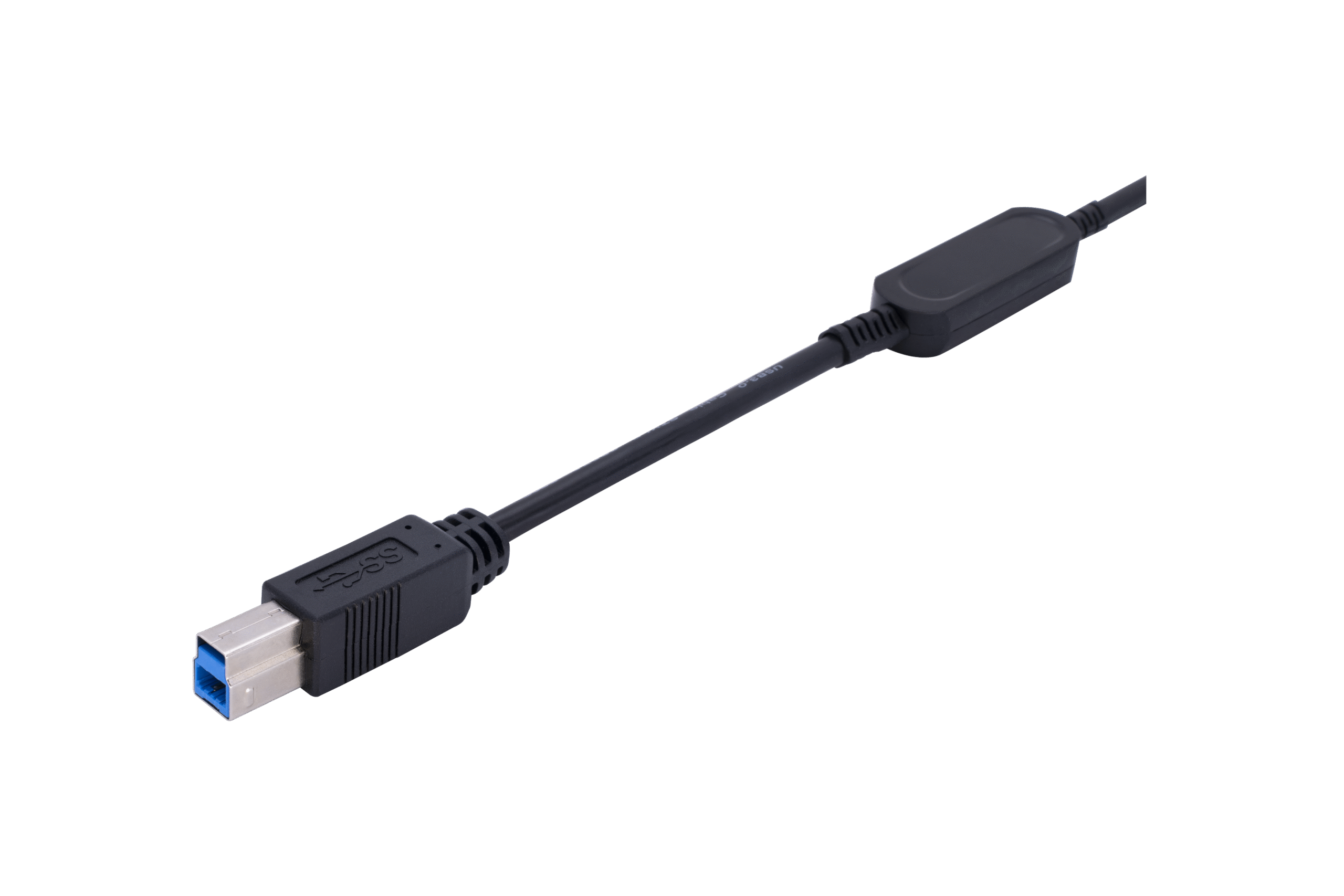

The LinkAura LA-AOC-UAMBM Series is a USB 3.1 (USB 3.2 Gen2x1) Active Optical Cable (AOC)
with Type A (male) to Type B (male) connectors. It supports SuperSpeed 10Gbps transmission over
hybrid fiber + copper, extending reliable USB connections up to 50 meters.
With zero EMI interference, stable signal quality, and full downward compatibility with USB 2.0 & USB 1.1
(up to 15m), it is ideal for industrial, medical, and multimedia applications.

Key Features

• Extends USB 3.1 Gen 2×1 (10Gbps) up to 50m
• Downward compatible with USB 2.0 & USB 1.1 (1.1 supported up to 15m)
• Supports all major operating systems: Windows, Mac OS, Linux
• Fiber-optic noise immunity – no EMI interference
• Plug & Play, no external power required
• For use with self-powered peripherals only
• Cable OD: 4.5mm (4 fibers + 4 copper wires)
• Stable and long-distance data transmission for industrial use

Applications

• Industrial Control
• Machine Vision Systems
• Digital Signage
• Medical Device Connectivity
• Remote Monitoring
• Home Network Integration
• KVM Extension
• Remote Desktop USB 3.0/2.0/1.1 Connections
• Security (Webcams, Access Control)
• USB Device Sharing (Printers, Scanners, Storage, Audio Devices)

Technical Characteristics

• Supply Voltage: 4.75 – 5.25 V
• Bus Current: ~55 mA typical
• Differential Impedance: 90 Ω
• TX Output Power: 0 dBm
• RX Sensitivity: -7.5 dBm
• Total Jitter: ≤ 100 ps (at 10⁻¹² BER)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 10–85% RH
