Description

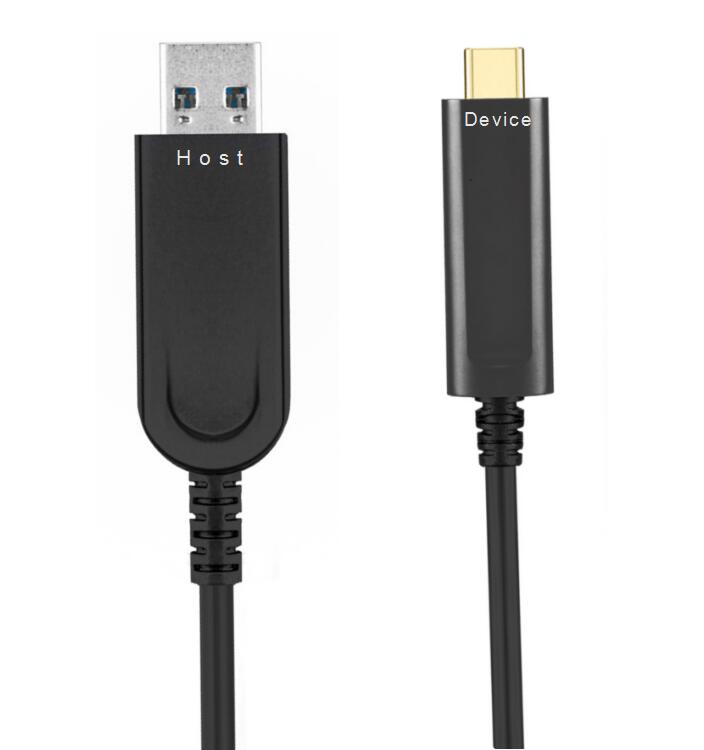

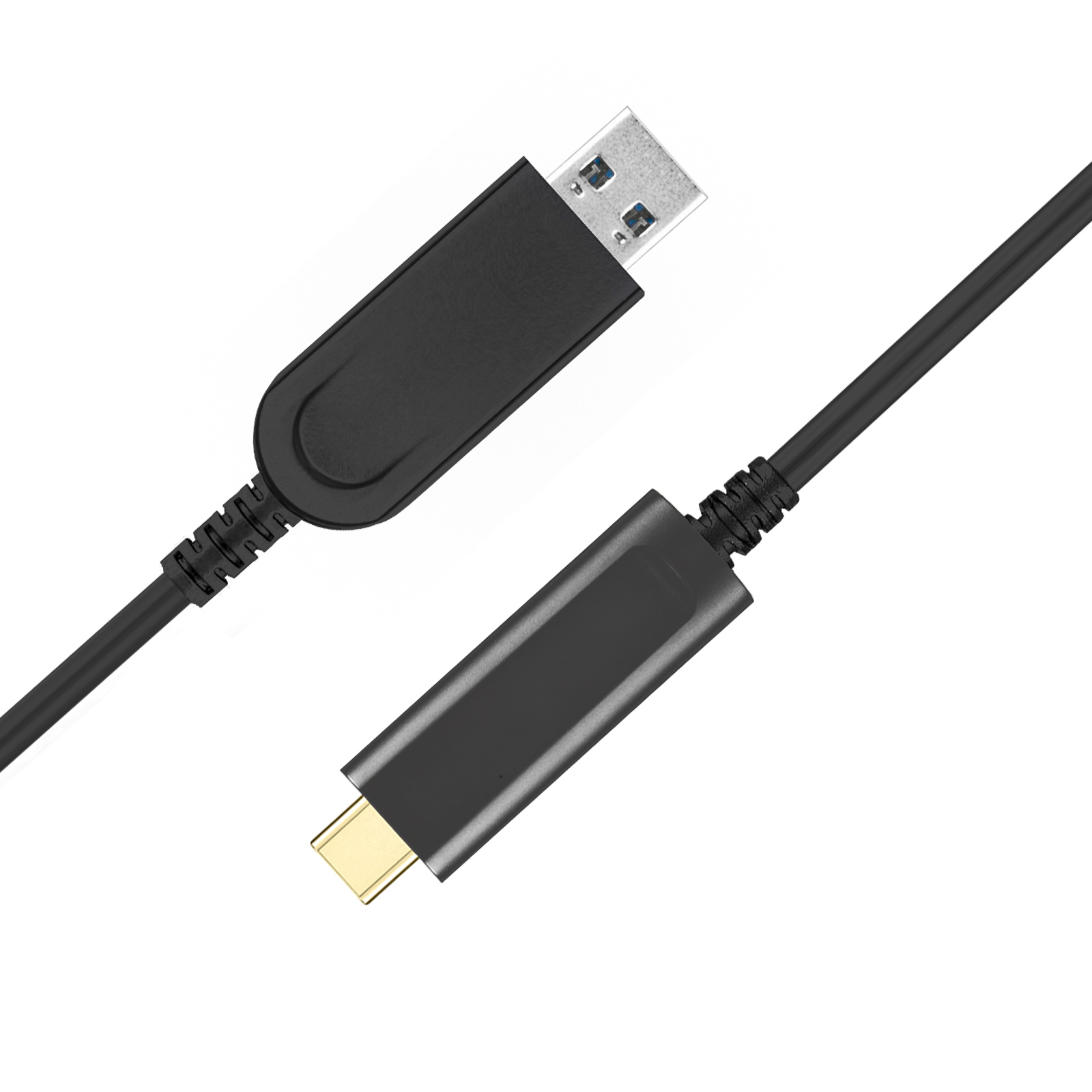

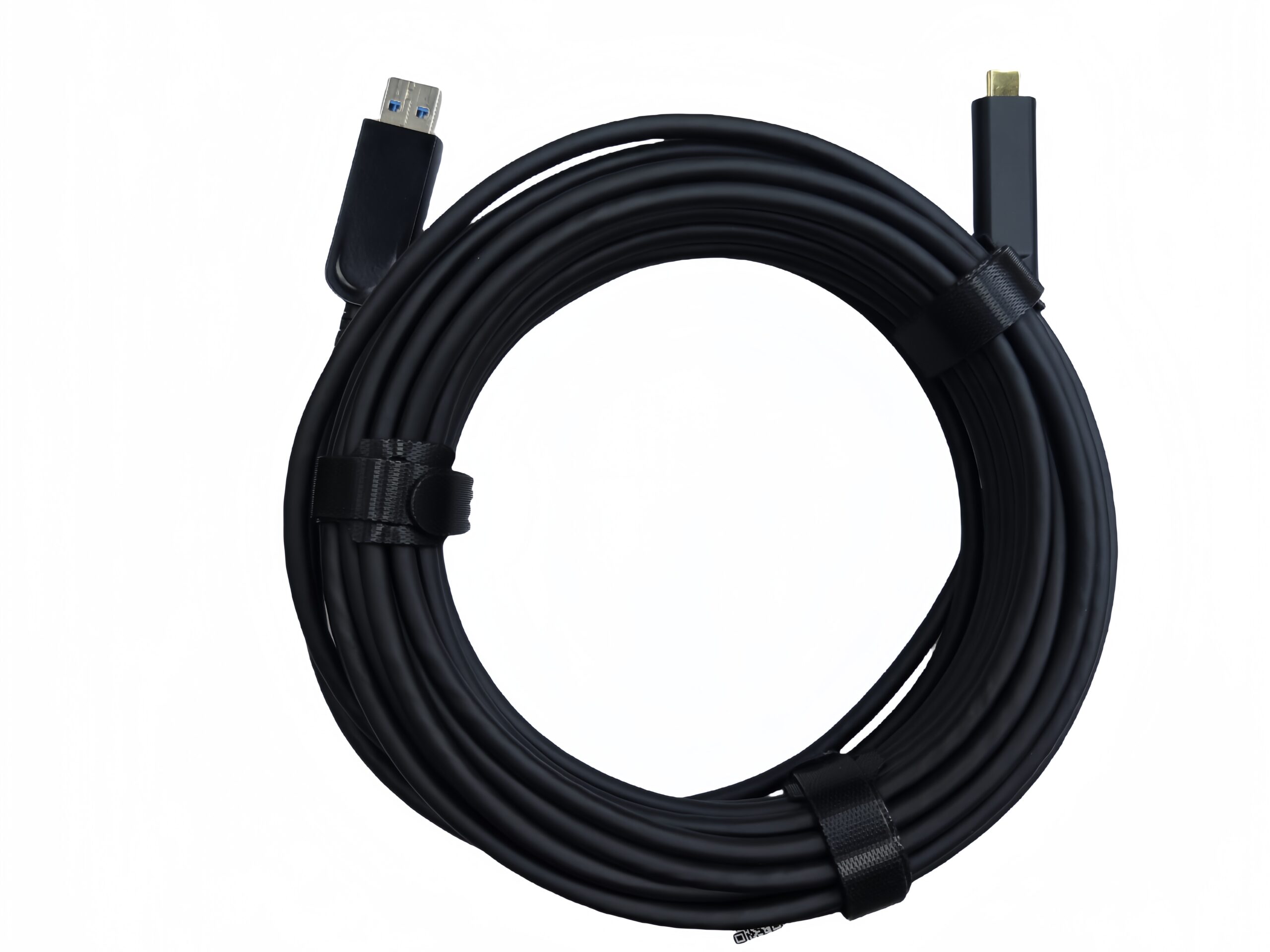

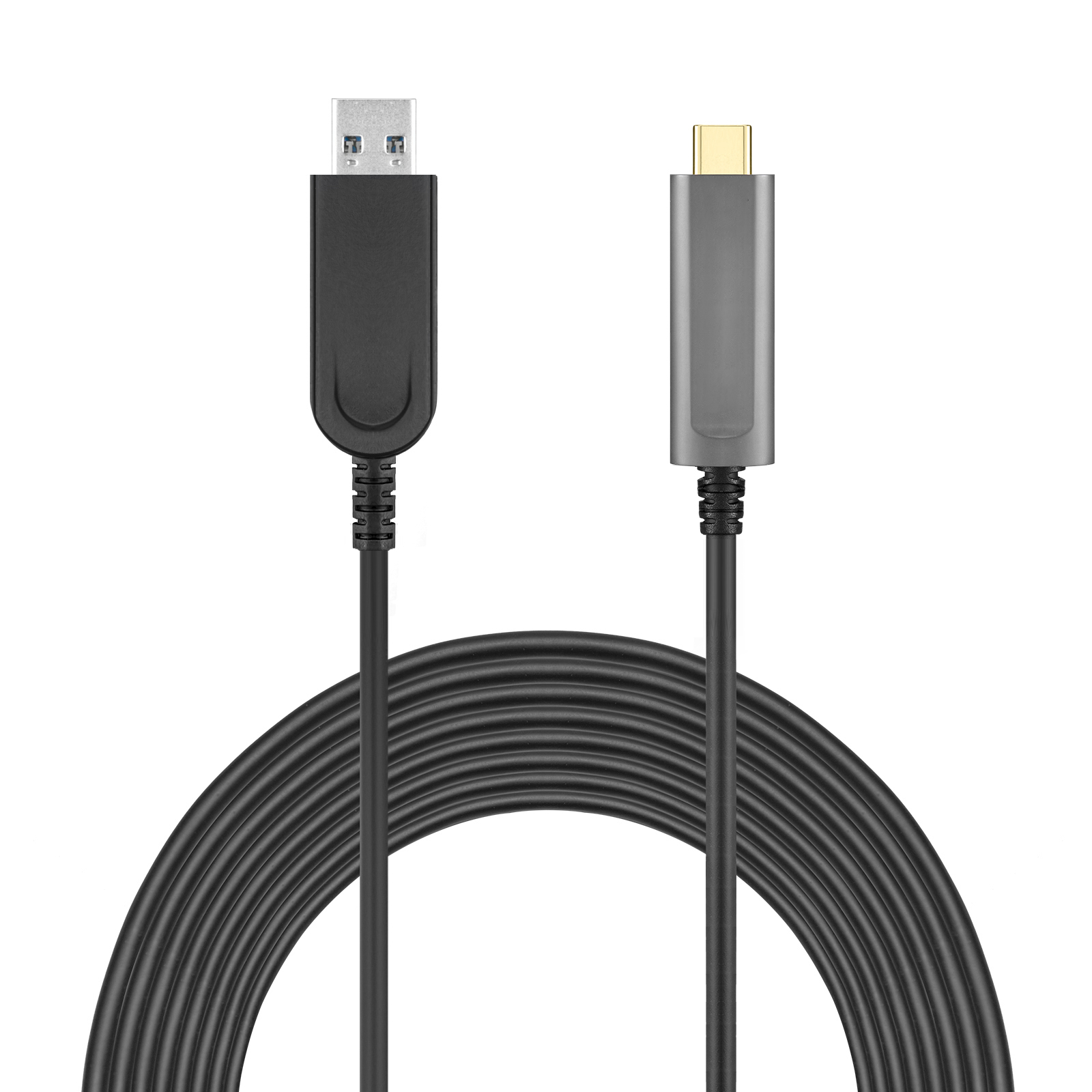

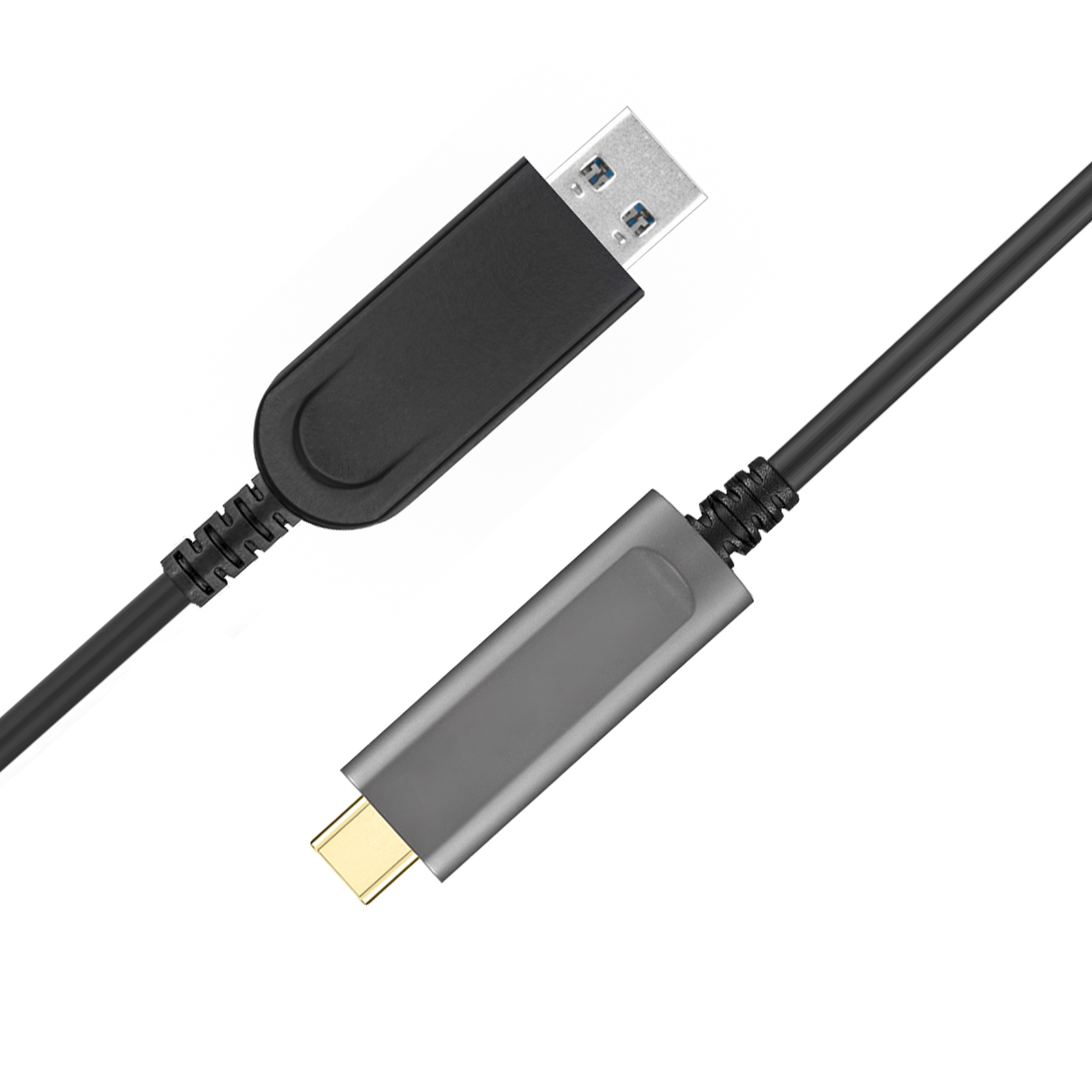

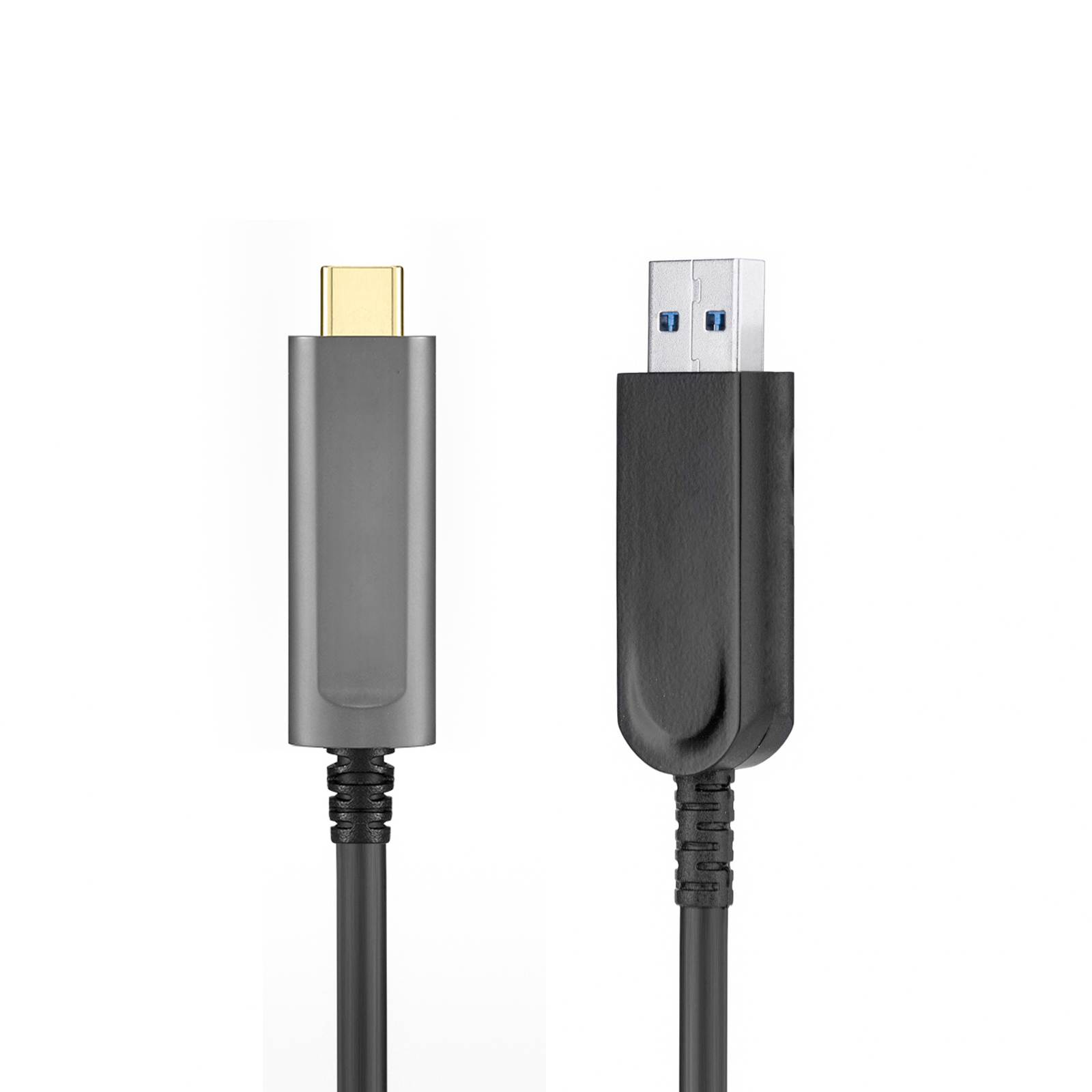

The LinkAura LA-AOC-UAMCM Series is a USB 3.1 Type A (Male) to Type C (Male) Active Optical Cable (AOC)
designed for seamless integration between USB Type-C peripherals and Type-A hosts.
With Gen 2, 10Gbps high-speed data transfer and video transmission capability,
this cable ensures reliable performance across professional, industrial, and home applications.
Its hybrid fiber + copper design guarantees long-distance, EMI-free connections with support for USB 3.0,
downward compatibility with USB 2.0 & USB 1.1, and lengths up to 50 meters.
Key Features
- Supports USB 3.1/3.0 Gen 2, up to 10Gbps data transfer
- Downward compatible with USB 2.0 & USB 1.1
- Compatible with Windows, Mac OS, Linux
- Supports device power supply up to 5V/900mA (max 15m)
- Plug and Play – no external power required
- For use with self-powered peripherals only
- Cable OD: 4.5mm (4 fibers + 4 copper wires)
- Maximum length: 50 meters
- Noise immunity with optical transmission – no EMI interference
Applications
- Industrial Cameras
- Meeting Rooms & Conference Systems
- Machine Vision Systems
- Robotics
- Medical Devices
- Remote Storage Solutions
- High-Definition Video Surveillance Systems
Ordering Information
| Part Number | Description | Length |
|---|---|---|
| LA-AOC-UAMCM-05 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 & USB 1.1 | 5m |
| LA-AOC-UAMCM-10 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 & USB 1.1 | 10m |
| LA-AOC-UAMCM-15 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 & USB 1.1 | 15m |
| LA-AOC-UAMCM-20 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 | 20m |
| LA-AOC-UAMCM-25 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 | 25m |
| LA-AOC-UAMCM-30 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 | 30m |
| LA-AOC-UAMCM-50 | USB 3.0 Type A to Type C Male AOC, downward compatible with USB 2.0 | 50m |
