Description

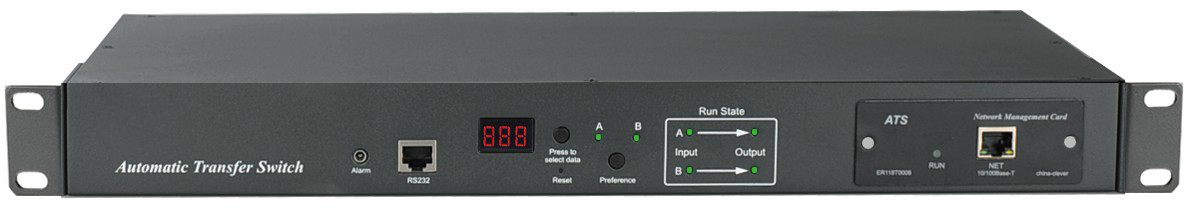

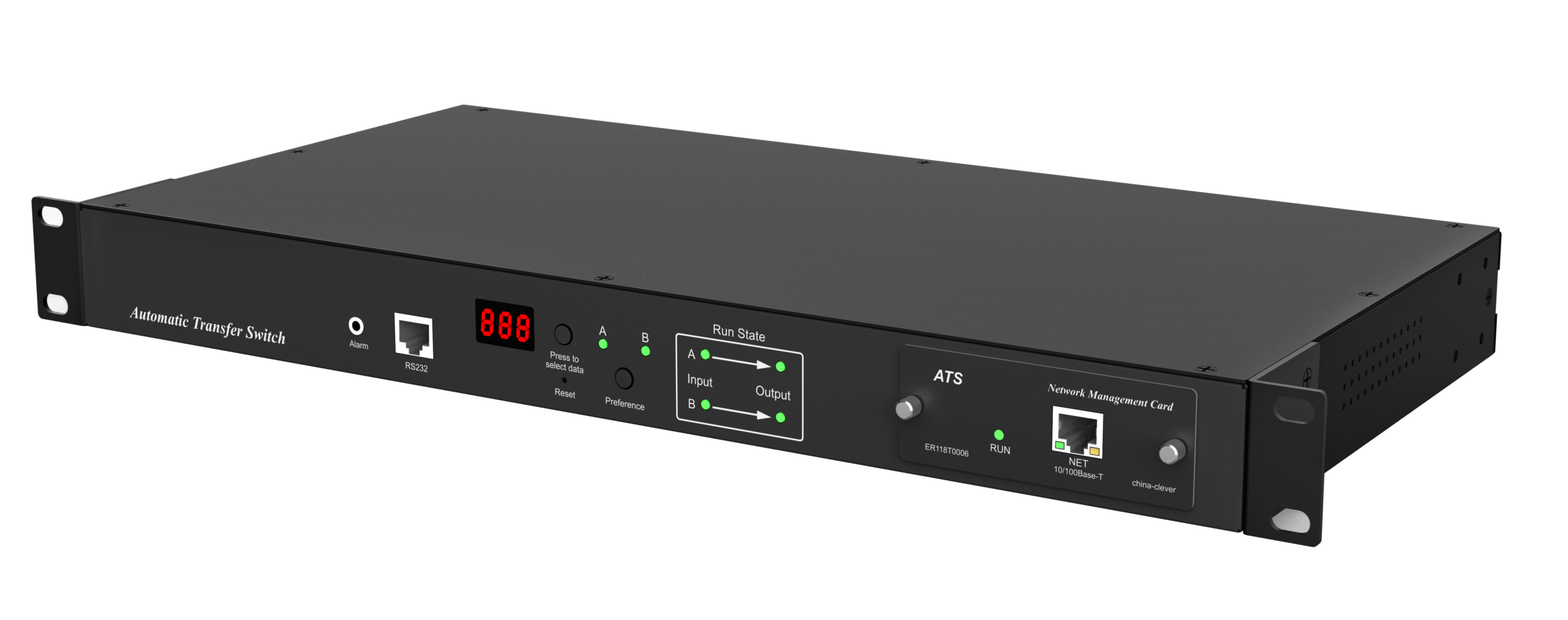

The Link Aura LA-PD Series ATS provides high reliable, redundant power to single-corded equipment in your server cabinets.
User can easily upgrade the Basic ATS to an intelligent one with the provided Network Management Card.
The Intelligent ATS will be able to monitor power utilization at the input level to prevent tripped breakers.
Features
Reliable Transfer Switch
- Reliable, Seamless Automatic Power Transfer Switching.
- LED Indicators show active power source.
Hot-swap NMC module
- ATS has a hot-swap network management card which enable you to upgrade the Basic ATS to a Intelligent One without affecting the outlet states
Web-based Remote Power Monitoring
- Real-time remote power quality monitoring with user define-able thresholds and alerts for voltage and current. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
- Wide range of input and output connections
- includes A variety of input and output connections to distribute 110V, or 220V
power to multiple outlets including IEC320 C13/C19 and Industrial connectors. - Having a variety of inputs and outputs allow users to adapt to varying power
requirements.
Product Specification
| Model | Rack Space | Input Voltage | Derated AMP | Input Plug | Outlet Types |
|---|---|---|---|---|---|
| LA-PD-16A0208ATS | 1U | 220V | 16A | 2×IEC 60320 C20 | 6×C13＋2×C19 |
| LA-PD-16A0201ATS | 1U | 220V | 16A | 2×IEC 60309 16A | 1×IEC 60309 16A |
| LA-PD-32A0201ATS | 2U | 220V | 32A | 2×IEC 60309 32A | 1×IEC 60309 32A |
| LA-PD-32A0216ATS | 2U | 220V | 32A | 2×IEC 60309 32A | 12×C13＋4×C19 |
| LA-PD-16A0208230ATS | 1U | 250V | 16A | 2×IEC 60320 C20 | 6×C13＋2×C19 |
Ordering Information
| Part Number | Description |
|---|---|
| LA-PD-16A0208ATS | LinkAura ATS PDU – 1U Rack Mount – 220V/16A inlet 2×IEC 60320 C20, Outlet 6×C13 [10A] + 2×C19 [16A] |
| LA-PD-16A0201ATS | LinkAura ATS PDU – 1U Rack Mount – 220V/16A inlet 2×IEC 60309 16A, Outlet 1×IEC 60309 16A |
| LA-PD-32A0201ATS | LinkAura ATS PDU – 2U Rack Mount – 220V/32A inlet 2×IEC 60309 32A, Outlet 1×IEC 60309 32A |
| LA-PD-32A0216ATS | LinkAura ATS PDU – 2U Rack Mount – 220V/32A inlet 2×IEC 60309 32A, Outlet 12×C13 [10A] + 4×C19 [16A] |
| LA-PD-16A0208230ATS | LinkAura ATS PDU – 1U Rack Mount – 230V/16A inlet 2×IEC 60320 C20, Outlet 6×IEC320 |
